2.449,00 €
RealWear Navigator 520 unit, Workband (head strap), USB-C Charging Cable and a basic setup manual. Wall charging brick sold separately, but any standard mobile phone charger will work.

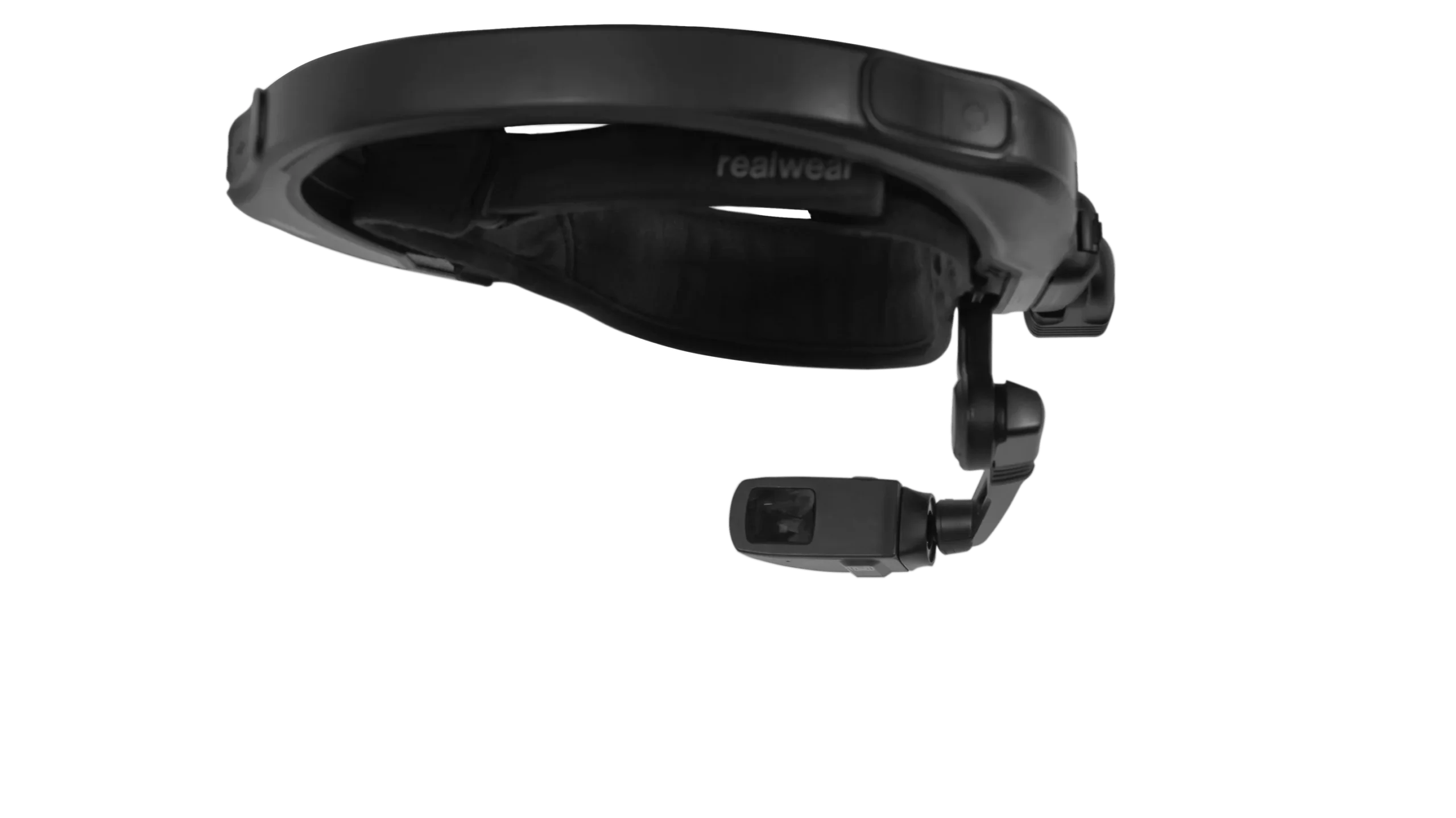

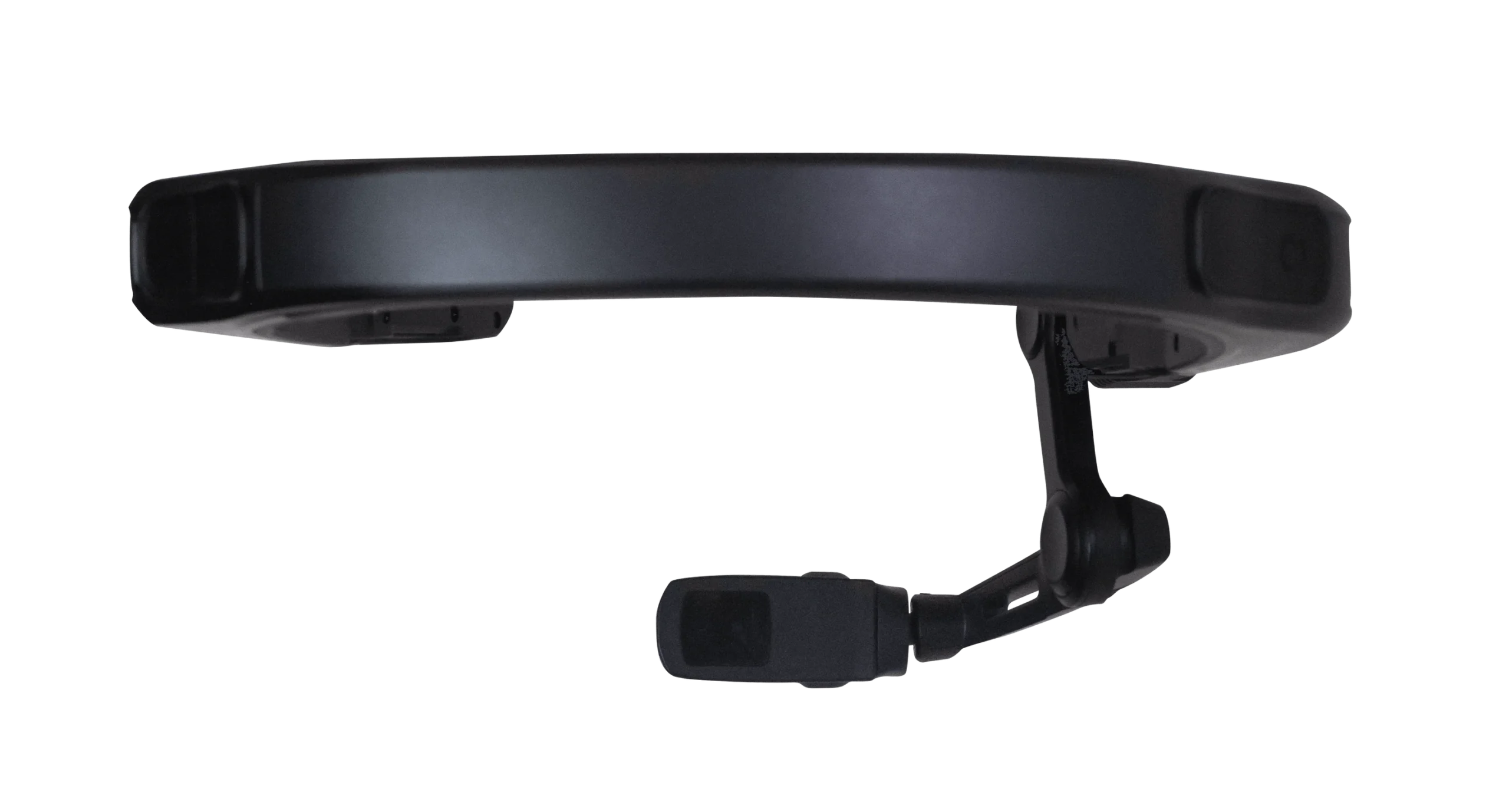

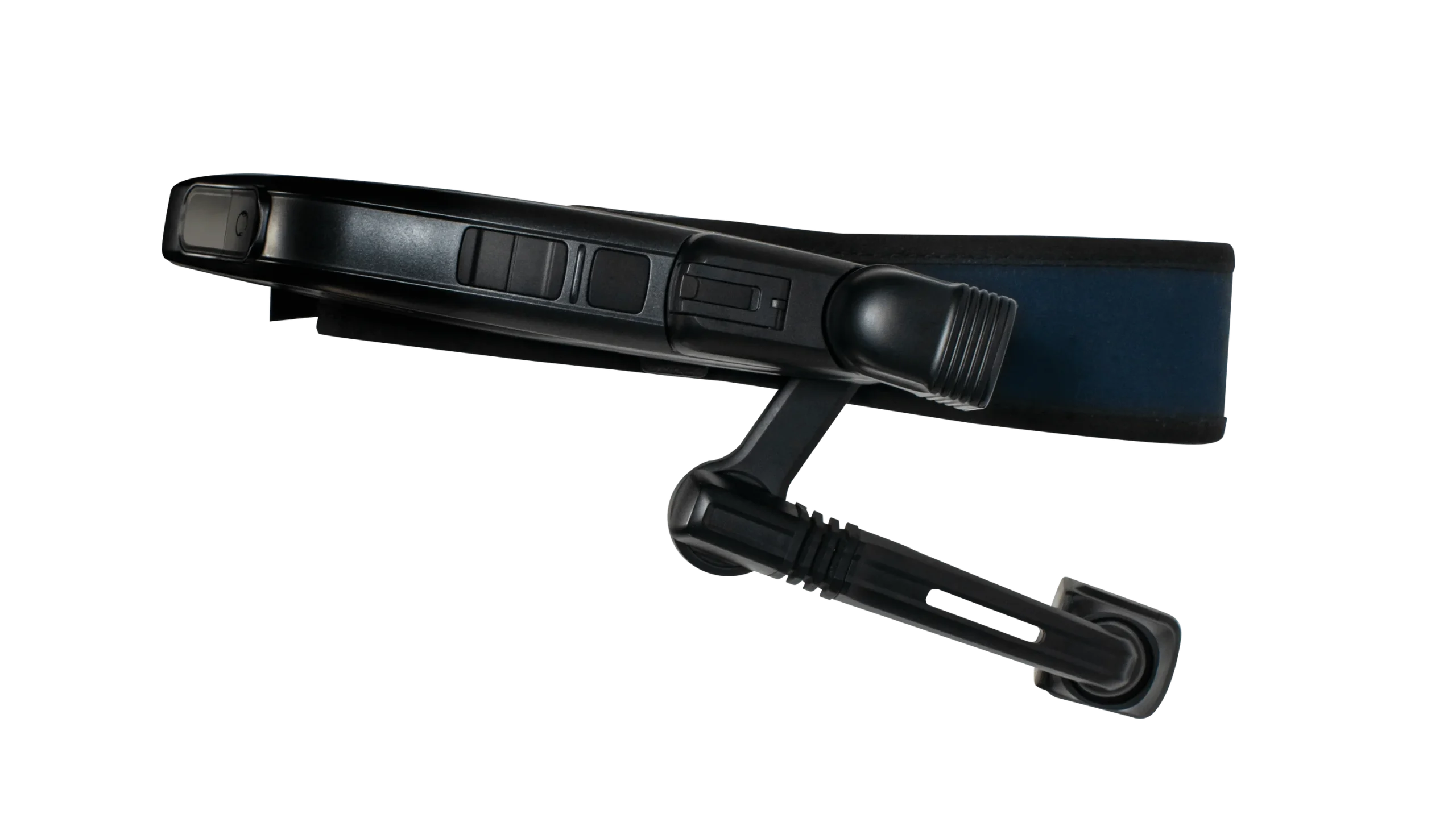

The RealWear Navigator 520 is a modular, rugged smart glasses solution designed to transform frontline work. It offers an immersive, hands-free experience that boosts safety, efficiency, and collaboration for industrial workers. Optimized for tough environments, the Navigator 520 features a durable build, extended battery life, and versatile connectivity options. With its advanced design, it empowers frontline teams to work more productively, efficiently, and safely than ever before.
| Feature | Details | Feature | Details |
|---|---|---|---|
| Operating System: | Ari OS 2.0 (Android 13 based) | Bluetooth: | 5.1 (BLE + standard) |
| Chipset: | Snapdragon 662 | Wi-Fi: | 802.11 a/b/g/n/ac – 2.4 GHz and 5GHz |
| Memory: | 64GB/ 4GB RAM | Sensors: | 3‑axis gyroscope and a 3‑axis accelerometer/ Barometer/ 3-Axis Magnetometer/Ambient light sensor/wear detection sensor/capacitive touchpad / Awareness Sensor 160° FOV, 2MP, B&W |
| Weight & Dimensions: | 179 grams/ 155 x 68 x 64 mm | Battery capacity: | 2000mAh/Lithium-polymer/Rechargeable/3.8V |
| Materials: | LEXAN™ EXL9330 | Security: | Qualcomm® Trusted Execution Environment, Crypto Engine, Secure Boot |
| Model name: | A31G | Microphone Count: | 4 digital microphones with active noise cancellation. Accurate voice recognition in noise up to 100 dBA. |
| Ports USB: | Type-C | Sound: | Noise reduction and echo cancellation |
| Temperature: | -20°C to 45°C/ | Speaker: | Internal 85dbA loudspeaker on both sides. |
| Humidity: | 10% to 80% (non-condensing) | Wide-Angle Camera: | OmniVision OV8856 — 120° FOV, 8 MP |
| Languages & Dialects Supported: | Chinese (Cantonese, Mandarin-Simplified and Traditional), Czech, Danish, Dutch, English (American, Australian, British, Indian), French, German, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Ukrainian, Spanish, Turkey, Thai | Main Camera: | Sony IMX882 — 82° FOV, 50 MP |
| Sign-in Options: | Options Companion App, Voice Keyboard with secure mode, Everykey | Video Capabilities: | 4K at 30fps, 1080p at 120fps |
| Display Technology: | Micro-OLED, Full-Color/ DCI-P3, 95% Resolution Full HD, 1920×1080 SPR, 1080p monocular FOV 22° | Supported Codecs: | h264, hevc, mpeg4-sw, vp8, vp9, vc1, div4/5/6-sw, h263-sw, mpeg2 |
| Supported Eye: | Alternately in both the right or the left eye. | Cloud Services: | Ari Cloud: Accelerates centralized deployment and managment of devices |
| Compatible With: | Prescription/safety glasses, in-ear & over-ear hearing protection, in-ear & over-ear Bluetooth headphones |
Manufacturing: Remote commissioning of machinery and faster MRO (Maintenance, Repair, and Operations).
Oil, Gas & Mining: Safe inspections in hazardous zones.
Automotive: Expert guidance for complex vehicle breakdowns at dealerships.
Audits & Inspections: Remote site verification and compliance monitoring with traceable visual evidence.
What is the RealWear Navigator 520?

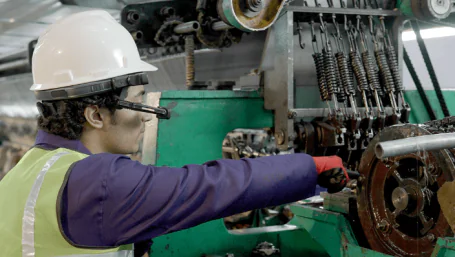

The RealWear Navigator 520 is a ruggedized, head-mounted assisted reality device designed specifically for frontline professionals. It provides a hands-free, voice-controlled interface that allows workers to access information and collaborate with remote experts while remaining fully focused on their manual tasks.
What are the main differences between the Navigator 500 and the Navigator 520?
The primary upgrade in the Navigator 520 is the HyperDisplay. It features a 20% larger viewing area with a significantly higher resolution (1280×720) compared to the Navigator 500. It also offers a larger eyebox and longer eye relief, making it easier to see the screen and more comfortable for full-shift use.
Is the RealWear Navigator 520 truly hands-free?
Yes. The device is 100% voice-controlled. It uses advanced noise-cancellation technology with four digital microphones to recognize voice commands accurately even in high-noise industrial environments (up to 100 dBA).
How rugged is the device?
The Navigator 520 is built for the toughest industrial environments. It is IP66 rated (completely dust-tight and protected against powerful water jets) and has been drop-tested according to MIL-STD-810H standards (resistant to drops from up to 2 meters onto concrete).
What are the camera specifications?
The device features a high-performance 50 MP camera with 4-axis optical image stabilization. It supports 1080p video at 60fps and has an enhanced telephoto mode that delivers over 6x zoom while maintaining HD quality.
Can I use the Navigator 520 with safety equipment?
Absolutely. Its modular design and adjustable boom arm make it compatible with almost all Personal Protective Equipment (PPE), including hard hats, safety glasses, and chemical suits.
Does it support thermal imaging?
Yes. One of the standout features of the Navigator series is its modular design. You can easily swap out the standard camera for the optional Thermal Camera Module to perform hands-free temperature-based diagnostics and preventative maintenance.
How long does the battery last?
The battery is designed for almost a full shift (typically 4–6 hours) depending on the application used. Crucially, it features hot-swappable technology, allowing you to change the battery during operation without having to shut down the device or restart your applications.
What software is compatible with the Navigator 520?
It runs on Android 11 and is fully compatible with Wideum’s remote support solutions like Remote Eye and Process Eye. It also supports over 200 voice-optimized enterprise apps, including Microsoft Teams, Zoom, and various MDM (Mobile Device Management) solutions like Microsoft Intune and SOTI.
Is it suitable for remote assistance?
Yes, remote assistance is a primary use case. By using the Navigator 520 with software like Remote Eye, a frontline worker can share their “see-what-I-see” view with a remote expert, who can then provide real-time guidance, draw on the user’s screen, and share documents.
